Check Valves / Non Return Valves

The Check Valves have two openings in the body, one for fluid to enter and the other for fluid to leave. These Check Valves are used for diverse purposes. Moreover, we offer the Check Valves in different types and sizes.

Features

- Two openings
- High performance
- Superior quality
- Made from high grade material

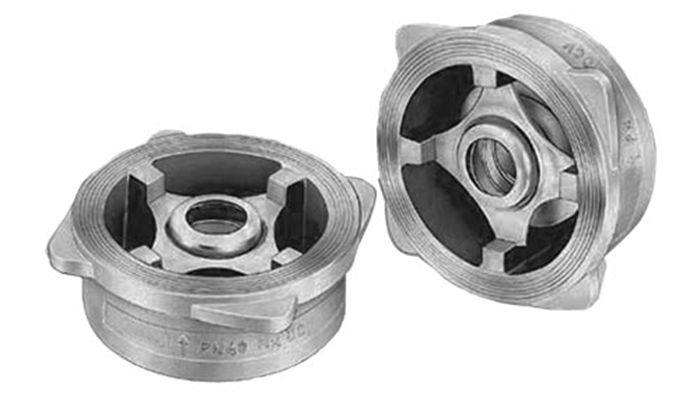

DISC CHECK VALVE (DCV) - NON SLAM SINGLE PLATE CHECK VALVE

Technical Specifications :

- BODY MATERIAL : CF8 (SS 304), CF8M (SS 316)
- DESIGN : DISC TYPE - NON SLAM SINGLE PLATE CHECK VALVE
- SEAT MATERIAL : METAL SEATED
- END CONNECTION : FITTED BETWEEN TWO FLANGES.
- PRESSURE RATING CLASS : ASA 150, 300, 400, PN 10, PN 16 & PN 40
- SIZE RANGE : 15mm to 300mm

Dual Plate Check Valve

Technical Specifications :

- BODY & DISC MATERIAL : CAST IRON, CARBON STEEL
- ASTM A 216 GR. WCB), CF8 (SS 304), CF8M (SS 316),
- CF3M (SS 316L), SS 202, ALLOY STEEL & OTHERS.
- SEAT MATERIAL : METAL SEATED, SOFT SEATED.
- DESIGN : DISC TYPE - DUAL PLATE CHECK VALVE.
- END CONNECTION : FITTED BETWEEN TWO FLANGES.
- PRESSURE RATING CLASS : ASA 125, 150, 300
- SIZE RANGE : 50mm TO 1000mm

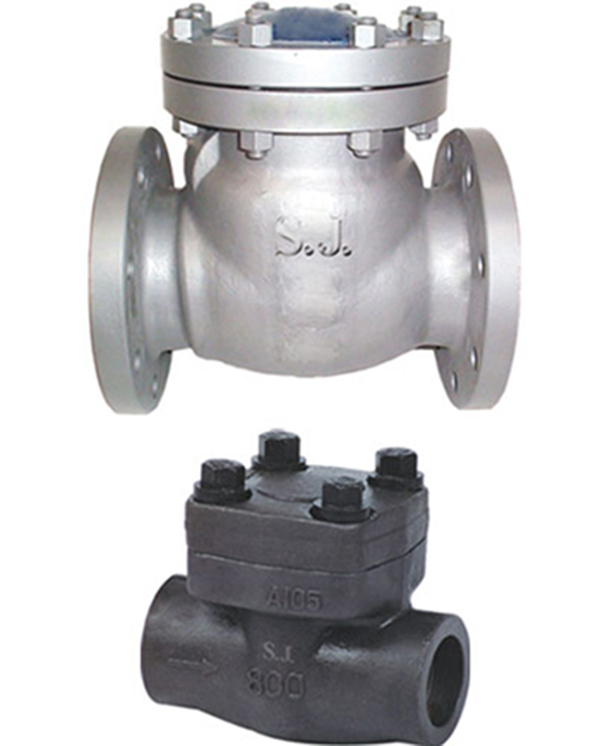

Lift Check Valve

Technical Specifications :

- BODY MATERIAL : CAST IRON, CAST CARBON STEEL
      (ASTM A 216 GR. WCB), FORGED CARBON STEEL
      (ASTM A 105), CF8 (SS 304), CF8M (SS 316), CF3M (SS 316L),
      SS 202, ALLOY STEEL & OTHERS
- DESIGN : LIFT TYPE FOR HORIZONTAL POSITION & JACKETED.
- END CONNECTION : SCREWED, SOCKET WELD, FLANGED END, BUTT       WELD END, RTJ.
- PRESSURE RATING CLASS : ASA 150, 300, 600, 800, 900, 1500, 2500,
       BS 10 TABLE D, E, F, H, ND 16 & ND 40.
- SIZE RANGE : 15mm TO 400mm

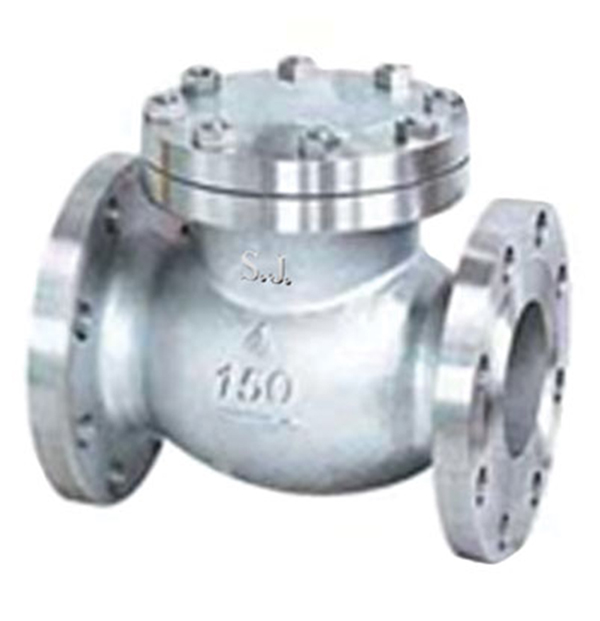

Swing Check Valve

Technical Specifications :

- BODY MATERIAL : CAST IRON, CAST CARBON STEEL
       (ASTM A 216 GR. WCB), CF8 (SS 304), CF8M
      (SS 316), CF3M (SS 316L), SS 202, ALLOY STEEL & OTHERS.
- DESIGN : SWING TYPE FOR VERTICAL POSITION, JACKETTED.
- END CONNECTION : FLANGED END, RTJ.
- PRESSURE RATING CLASS : ASA 150, 300, 600, 900, 1500, 2500, BS 10       TABLE D, E, F, H, ND 16 & ND 40.
- SIZE RANGE : 15mm TO 400mm

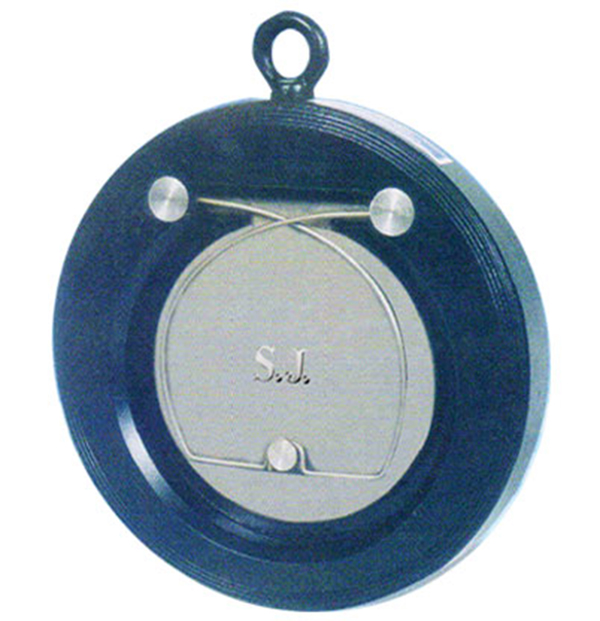

Wafer Check Valve

Technical Specifications :

- BODY MATERIAL : CAST IRON, CAST CARBON STEEL
       (ASTM A 216 GR. WCB), MS, CF8 (SS 304), CF8M (SS316),
       CF3M (SS 316L), SS 202, ALLOY STEEL & OTHERS.
- DESIGN : WAFER TYPE ( FLAP TYPE)
- SEAT MATERIAL (LINING) : NITRILE, EPDM, SILICON, VITON, PTFE.
- END CONNECTION : FITTED BETWEEN TWO FLANGES
- PRESSURE RATING CLASS : ASA 150,300, PN 10.
- SIZE RANGE : 25mm to 1400mm
